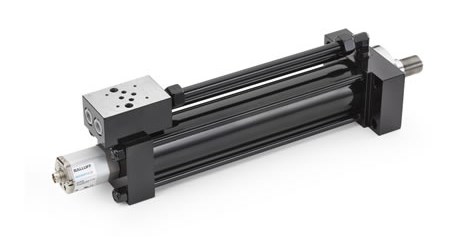

CHM Series

The CH series follows International standards ISO 6020/2 and DIN 24554.

The compact construction with squared heads and tie rod fits to every kind of industrial application with continuous nominal pressure up to 16 MPa.
The choice of selected materials, the severe controls of 100% of all cylinders produced and the quality of the means of production, allows us to reach high standards of quality, reliability and enduring product performance.
The seals used, supplied by premium suppliers, grant high performance and international availability.

The wide range of seals, allows us to offer cylinders for applications with different kinds of hydraulic fluids, speed, frequency and operating temperature.

Our production includes the optional integration of position transducers and adjustable magnetic sensors.

Technical characteristics:

• Standard ISO 6020/2 and DIN 24554.
• Nominal pressure 16 MPa (continuous operation)
• Pressure peak 21 MPa
• Maximum pressure 25 MPa
• Bore: 25-200 mm
• Stroke: up to 4000 mm
• Up to 3 rod diameter per bore
• Single or double rod
• 14 Mounting styles Ref. ISO MP1 – MP3 – MS2 –MT1 –MT2 –MT4 –ME5 –ME6 –MP5 –MX6 –MX2 –MX5- MX3 –MX1

• Fixed or adjustable cushions
• Wide range of seals to suit speed, frequency, temperature and fluid specification
• Integrated head mounted proximity sensor
• Integrated position transducer
• Adjustable magnetic sensors
• Air bleeds
• Rod treatment : chromed, induction hardened and chromed, nickel-chromed
• Drainage
